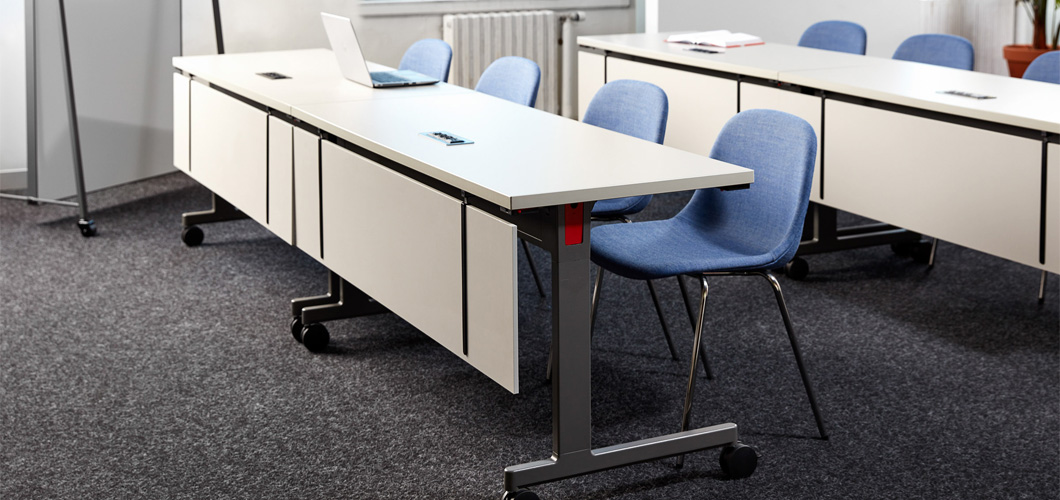

Pixel Screen

Designed to create effective learning and training environments, the Pixel Collection fosters connections and creativity. The Pixel modesty and privacy screens are compatible on all Advanced and Simplified tables, as well as Y and four leg tables. All standard Pixel laminate and ABS edgeband finishes are offered allowing them to coordinate seamlessly with all tables.

Details

Construction and Details

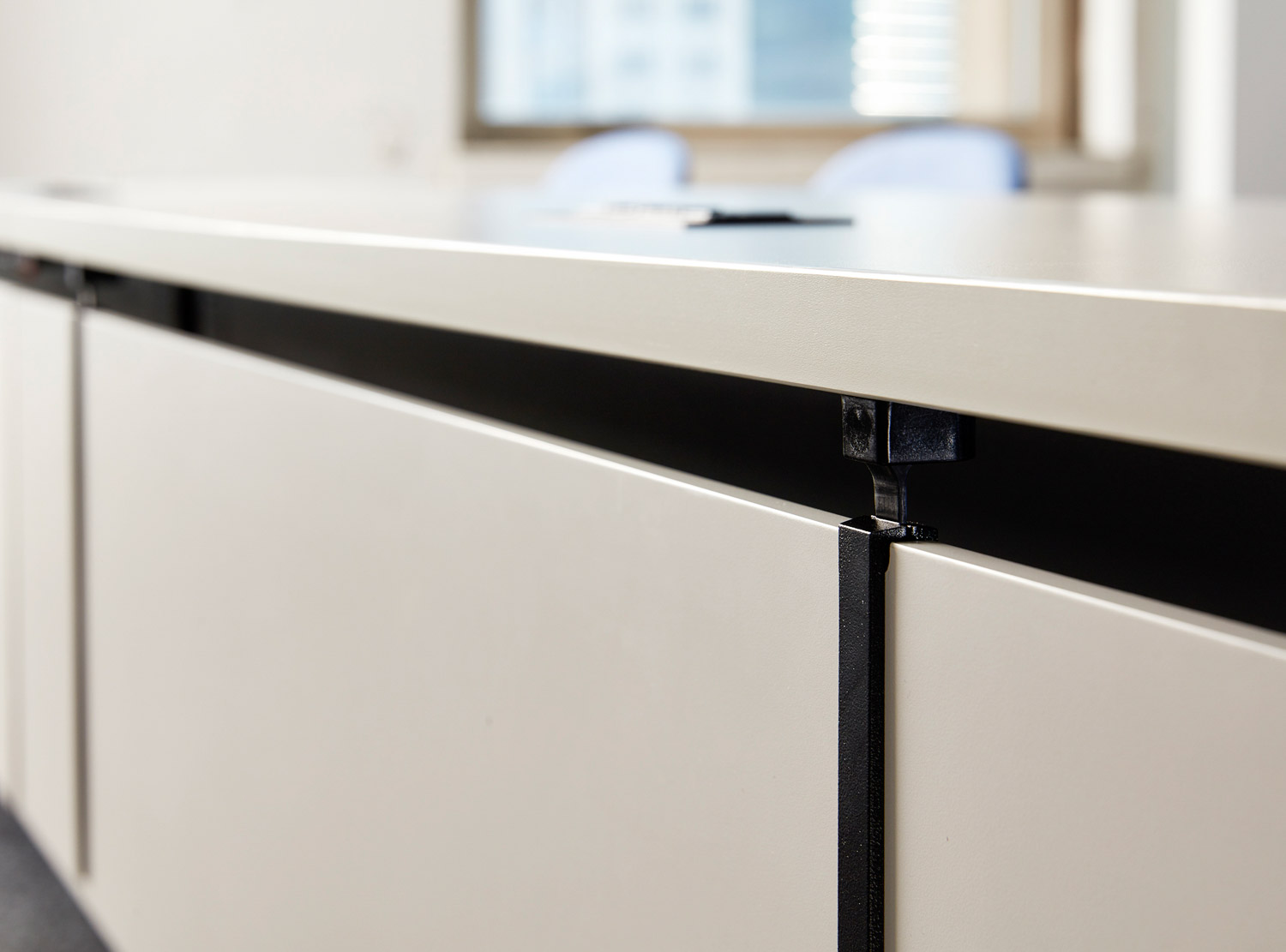

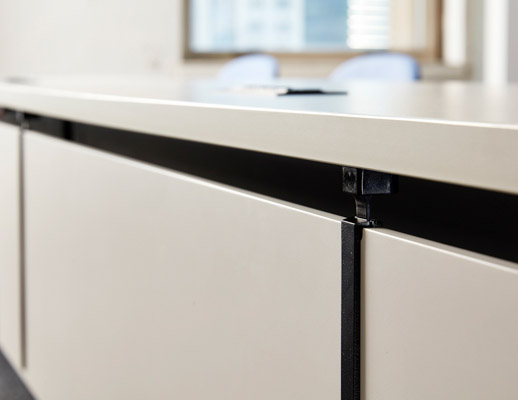

Screens are designed to attach to the underside of any standard 1 ½” worksurface
Screens extend below the worksurface providing a “built-in” modesty panel
Cantilever attachment brackets include a knockout with cover to provide horizontal cable management. A steel trough, between the brackets, supports and/or conceals excess wires.
Back adds 1” to the depth of the worksurface when mounted flush, sides add 1” per side
Can only be used with T-Leg height adjustable tables
Easily retrofittable
Metal is available in all core paint colors and is magnetic
Tackable fabric is available in all screen fabric options
Slatwall is available in all core paint colors

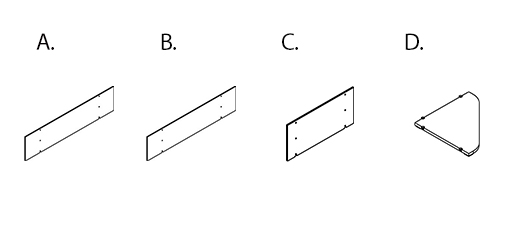

Dimensions

Modesty Screen (Below tabletop)	h	d	l
C-Leg (Fixed and Flipped)	14"	.5"	48 / 60 / 72"
Four Leg	14"	.5"	44 / 56 / 68"
T-Leg - Fixed	14"	.5"	60 / 72"
T-Leg - Flip	14"	.5"	38" / 50"

Privacy Screen (Above tabletop)	h	d	l
T-Leg	14"	.5"	60 / 72"
Y-Leg	14"	.5"	48 / 60 / 72 / 84"
Four Leg	14"	.5"	48 / 60"

Side Screen	h	d	l
C-Leg	14"	.5"	24 / 30 / 36"
Four Leg	14"	.5"	24 / 30 / 36"
T-Leg	14"	.5"	24 / 30 / 36"
Y-Leg	14"	.5"	24 / 30 / 36"

Corner Wedge	w	d
	25.5 / 34 / 42.5 / 51"	18 / 24 / 30 / 36"
